Lithium Battery Wiring Harness: Safe, Reliable Connections

Open up any lithium battery pack. Wires everywhere. Thick ones for power. Thin ones for voltage sensing. More wires for temperature probes. Without good organization, you get short circuits and wrong readings. A lithium battery wiring harness fixes that. It bundles the wires together. Stops them from rubbing. Makes sure each connection goes where it belongs.

Why Lithium Batteries Need Special Wiring

High current makes heat. Cheap wire cannot handle it.

A lithium pack can push 100 amps or more. That much current heats up wires fast. Regular PVC insulation gets soft at 80 degrees Celsius. On a hot day inside a battery box, you are already close to that. Then add the heat from the current. A good lithium battery wiring harness uses high-temperature insulation. Cross-linked polyethylene or silicone rubber. Rated for 125 degrees. No melting. No shorts.

Voltage drop is another problem. A long thin wire loses voltage. In a 48V system, losing 2V means a 4 percent loss. Someone has to pick the right wire gauge for each connection. Get it wrong, and the system wastes power.

Every cell needs its own wire

A 48V lithium pack might have 16 cells in a row. Each cell needs a sense wire going to the battery management system. That is 16 small wires right there. Add temperature sensors. Add communication lines. A lithium battery wiring harness has to handle all of them. Those small wires need to be twisted together to cancel out electrical noise. Skip the twisting, and the BMS gets wrong voltage readings. Then it might overcharge some cells and undercharge others.

What Goes Inside the Harness

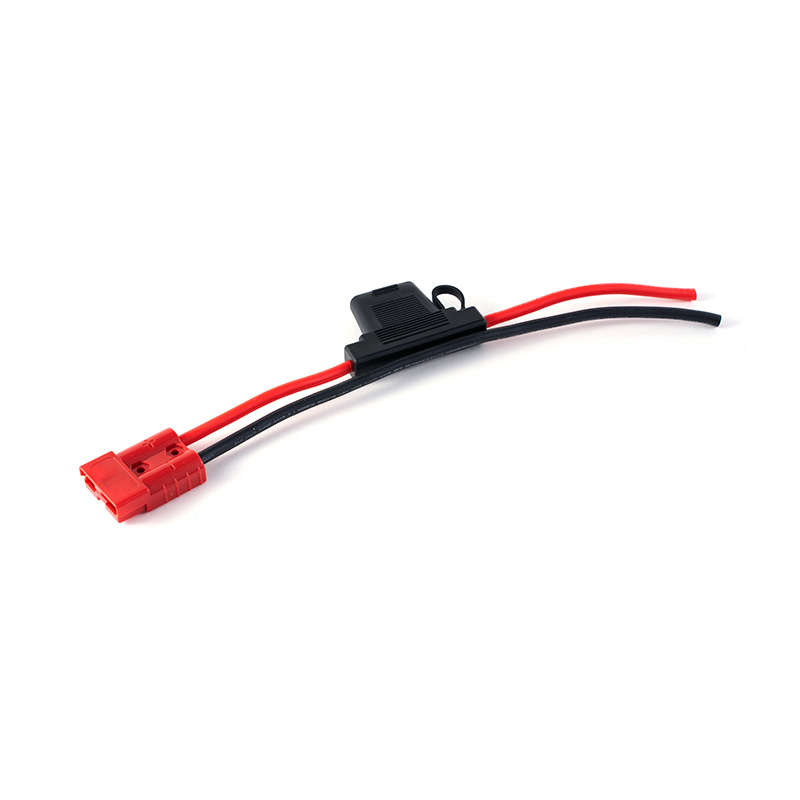

Main power cables carry current to the inverter

The thickest wires in the harness connect the battery terminals to the inverter. Usually 16mm², 25mm², or 35mm². The ends get crimped with a hydraulic tool. A bad crimp heats up and fails. The cables need to be cut to the exact length. Too long, and they bunch up. Too short, and they do not reach.

Sense wires carry cell voltages to the BMS

These small wires are the most important part of the whole harness. The BMS reads cell voltage through them. If a sense wire breaks, the BMS loses that cell. It cannot balance the pack anymore. If the wire picks up noise, the voltage reading is wrong.

Here is what those sense wires need:

• Twisted pairs to cancel out interference
• Crimped terminals, not soldered — solder cracks from vibration
• Colors that match the BMS pinout
• Labels on each wire so the assembler knows where to connect

How a Good Harness Gets Made

Machines cut and strip wires

A harness for a 16-cell pack has over 30 wires. Each one is a different length. Cutting them by hand leads to mistakes. Automated machines cut and strip with precision. Length tolerance is plus or minus 1 millimeter.

Pull tests check the crimps

Every terminal gets crimped. Then the machine pulls on a sample to make sure it holds. The wire should break before the terminal pulls off. Good suppliers test every batch. Cheap suppliers test once a month.

Labels save time

A harness with no labels is a nightmare. Someone spends hours tracing wires. Mistakes happen. Good harnesses have shrink-tube labels on each wire. Cell 1 positive. Cell 2 positive. Temp sensor 1.

What Goes Wrong with Cheap Harnesses

Insulation melts and wires short out

Cheap harnesses use PVC wire rated for 80 degrees. Inside a battery pack on a hot day, the pack hits 70 degrees. The wire carries 50 amps. The wire itself hits 90 degrees. PVC melts. Wires short. The pack is scrap.

Sense wires snap from vibration

Crimps on cheap harnesses are weak. The terminal falls off. Or the wire breaks right at the crimp. Vibration does the damage. The BMS loses that cell. The pack stops working.

The harness does not fit

Cheap harnesses are cut by hand. The worker eyeballs the length. Some wires are too long and bunch up. Others are too short and pull tight. Bunched wires get pinched. Pinched wires wear through the insulation. Short circuit. Fire.

A lithium battery wiring harness is not the most expensive part of a battery pack. But it fails more often than anything else. Cheap harnesses use cheap wire, bad crimps, and no labels. Good harnesses use high-temperature wire, verified crimps, and clear labels. Buy from a supplier that tests every batch. Ask for pull test reports. Your battery pack depends on it. The extra cost is nothing compared to a fire.
